CS30 Series
auto fuel dispenser
Products Configuration
Technical Parameters
Advantages
Options
Comments

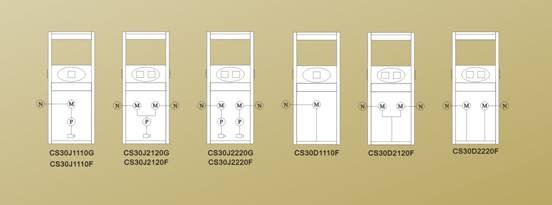

Product configuration option : | |
1. CS30J***0G | |
G series is LLG05 flow meter+GP03 gear pump | |
2.CS30J***0F | |
F series is LLG05++Combined Vane Pump |
Suction Dispenser | Model | Nozzle/Flow Meter | Petrol Product | Pump/Motor | Display each side | Main Board Number | Flow rate LPM |
CS30J1110G | 1 | 1 | 1 | 1 | 1 | 50 | |
CS30J2120G | 2 | 1 | 1 | 2 | 2 | 50 | |
CS30J2220G | 2 | 2 | 2 | 2 | 2 | 50 | |
CS30J1110F | 1 | 1 | 1 | 1 | 1 | 50 | |
CS30J2120F | 2 | 1 | 1 | 2 | 2 | 50 | |
CS30J2220F | 2 | 2 | 2 | 2 | 2 | 50 | |
CS30J1110G-80LPM | 1 | 1 | 1 | 1 | 1 | 80 | |
CS30J1110G-120LPM | 1nozzle/1Tokheim Satam P.D. flowmeter | 1 | 2 Censtar GP03 Gear pump | 1 | 1 | 120 | |
Remote Dispenser | CS30D1110F | 1 | 1 | 0 | 1 | 1 | 50 |
CS30D2120F | 2 | 1 | 0 | 2 | 2 | 50 | |
CS30D2220F | 2 | 2 | 0 | 2 | 2 | 50 |
111111111111111111 | |
Exterior Option There are two exterior designs, one is petrol dispenser 30E Sunny Series (in brief 30E) with canopy top, steel and powder coated panel cover, hose(oil outlet) is on middle of arm side; the other is 30 New Sunny Series (in brief 30) in streamline shape, plastic panel cover, hose(oil outlet) is on the top. | |
30E exterior Net size: 910*410*2100mm Package size: 1060*520*2255 Gross weight: from 235KG to 325KG 22 units can be loaded in one 20” container | 30 exterior Net size: 908*440*2100mm Package size: 1070*480*2255 Gross weight: from 235KG to 325KG 24 units can be loaded in one 20” container |
Auto fuel dispenser will produce liquid flow signals in the process of work, we need to turn it into a single chip microcomputer to digital signal input to the diesel pump manufacturers MCU internal, so we can choose to produce petrol dispenser liquid flow sensor to measure the pulse signal of the traffic. At the same time, auto fuel dispenser need to consider the external sensors of the electromagnetic interference and other issues, therefore, we need to flow between the sensor and gas pump manufacturers MCU interrupt input to join a photoelectric isolating device, so as to suppress interference.
